CONTINUOUS ALUMINIUM MELTING AND HOLDING FURNACE (SER Model)
The furnace is designed for continuous operation, making it suitable for industries that require a constant supply of molten metal. This allows for uninterrupted production and eliminates the need for frequent shutdowns and restarts. Super Low Speed Luminous Flame Burners: These burners are designed to provide a highly efficient and controlled combustion process. The low speed of the flame helps in achieving better temperature uniformity within the furnace, ensuring consistent quality of the molten metal.
SPECIFICATIONS
1. Fuels : Gas, Oil (Melting and Holding)
2. Melting rate 100kg/hr - 700 kg/hr
3. Holding rate 400 - 2,500 kg
SPECIFICATION
SER Furnace Specification
| Type | Melting Rate (Kg/Hr) |
Holding Capacity (Kg) |
Melt. Burner Cap. (Kcal/Hr) |
Hold. Burner Cap. (Kcal/Hr) |
|---|---|---|---|---|
| SER-100 | 100 | up to 450 | 80,000 | 80,000 |
| SER-150 | 150 | up to 550 | 100,000 | 80,000 |
| SER-200 | 200 | up to 700 | 120,000 | 80,000 |
| SER-250 | 250 | up to 900 | 150,000 | 120,000 |
| SER-300 | 300 | up to 1,100 | 150,000 | 120,000 |
| SER-400 | 400 | up to 1,300 | 200,000 | 150,000 |
| SER-500 | 500 | up to 1,500 | 350,000 | 200,000 |
| SER-600 | 600 | up to 2,000 | 400,000 | 300,000 |
| SER-700 | 700 | up to 2,500 | 400,000 | 300,000 |
| SER-800 | 800 | up to 3,000 | 600,000 | 400,000 |

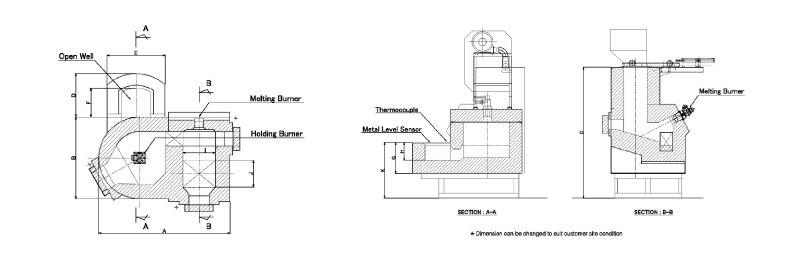

Model
