IMMERSED TYPE ALUMINIUM HOLDING FURNACE (SH Model)
The furnace is developed to eliminate all weak points of the conventional radiation type electric heating holding furnace. Because it is made up of high strength casted refractory chamber and highly insulating materials it becomes one of the most energy-saving, space saving holding furnaces.
SPECIFICATIONS
1. Holding: Immersive Heater
2. Melting rate: 500 kg/hr - 2,500 kg/hr
3. Holding capacity: 500 - 2,500 kg
SPECIFICATION
SH Furnace Specification
| Type | Melting Rate (Kg/Hr) |
Heater Capacity (KW x No. of Pcs) |
Electrice Power On Casting (KWH) |
Electric Power On Holding (Kcal/Hr) |
|---|---|---|---|---|
| SH-500 | 500 | 9x2 | 6 | 4 |
| SH-600 | 600 | 9x2 | 6 | 4 |
| SH-800 | 700 | 9x2 | 8 | 5 |
| SH-1000 | 1,000 | 9x3 | 10 | 6 |
| SH-1200 | 1,200 | 9x3 | 11 | 6.5 |
| SH-1500 | 1,500 | 9x3 | 13 | 7 |
| SH-1800 | 1,800 | 9x4 | 15 | 7.5 |
| SH-2000 | 2,000 | 9x4 | 17 | 8.5 |
| SH-2500 | 2,500 | 9x5 | 20 | 9 |

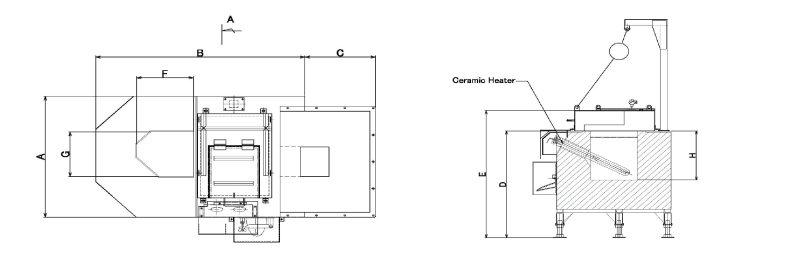

Model
