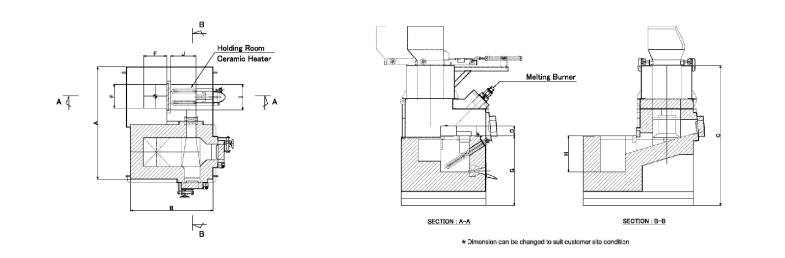

IMMERSED-TYPE HEATER CONTINUOUS ALUMINIUM MELTING AND HOLDING FURNACE (SEH Model)
The Melting and Holding Furnace you described is specifically designed for continuous operation and is suitable for processes such as aluminium die-casting and aluminium melting.
It features "Super Low Speed Luminous Flame Burners" in the Melting Chamber, which contribute to its improved performance compared to conventional furnaces.
Additionally, the Holding Chamber is equipped with electric heaters. This combination of burners and electric heaters helps achieve good temperature uniformity in the molten metal, ensuring consistent heat distribution throughout the furnace. As a result, this furnace offers excellent energy savings compared to traditional furnaces.
SPECIFICATIONS
1. Fuels :
Melting : Gas, Oil
Holding : Immersed Electric Heter
2. Melting rate 100kg/hr - 700 kg/hr
3. Holding rate 400-2,500 kg
SEH Furnace Specification
| Type | Melting Rate (Kg/Hr) |
Holding Capacity (Kg) |
Melt. Burner Cap. (Kcal/Hr) |
Heater Cap. (Kw x No. of Pcs) |
|---|---|---|---|---|
| SEH-100 | 100 | 450 | 80,000 | 9x2 |
| SEH-150 | 150 | 550 | 100,000 | 9x2 |
| SEH-200 | 200 | 650 | 120,000 | 9x3 |
| SEH-300 | 300 | 800 | 150,000 | 9x3 |
